water with solids
-
CX models (non-automatic)/CXA models (automatic)- Submersible PumpsPlastic/stainless steel models
for fishing
for industrial equipment
for kitchen wastewater
for pit gray water
for septic tank
for the chemical industry
● Compact and lightweight type that is convenient to carry and install.
● All wetted parts are made of resin and stainless steel (SUS316), which greatly improves rust resistance and durability.
●Eliminates clogging with a uniquely developed vortex structure.
●Original development of high-efficiency, energy-saving impellers and electric motors.
●Equipped with an automatic burnout prevention device in the motor. -
SSX models (non-automatic)- Submersible PumpsCast Iron Models
for agricultural
for civil engineering
● The impeller uses a special synthetic rubber with improved wear resistance.
●The unique vortex generation mechanism guides solid matter by vortex flow and discharges it without clogging in the pump.
●The shaft seal is completely sealed by attaching a V-ring.
● Back pull-out structure for easy maintenance and inspection.
●Equipped with an automatic burnout prevention device in the motor. -
E models (large capacity, wheeled)- Engine PumpsLarge size Models
For flood and disaster countermeasures
●Starting method is equipped with cell / recoil.
● Quietness is improved by installing a V-type engine.
●Compact direct-acting type with a common shaft for the pump and engine.
●By using the self-priming auxiliary device (optional), the self-priming time is greatly reduced.
●The adoption of a specially designed semi-open impeller achieves a maximum particle diameter of 22mm.
●Wheel is big, and movement is smooth.
●Equipped with an outrigger mechanism to prevent overturning. -

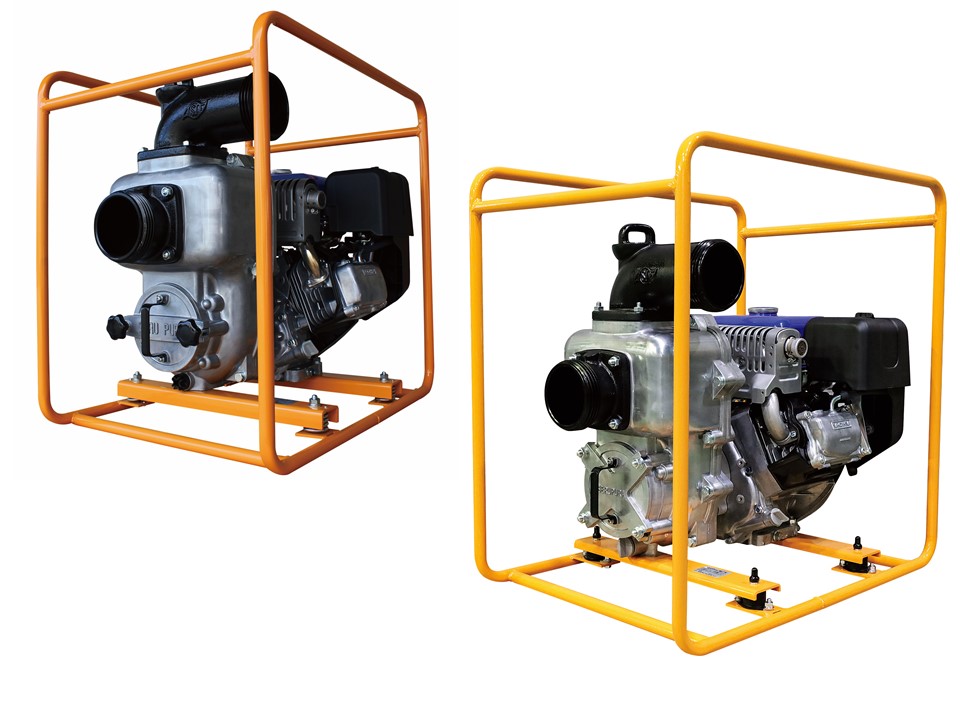

ETS models (for civil engineering)- Engine PumpsMedium size Models
- for agricultural
- for civil engineering
- For flood and disaster countermeasures
●Exhibits outstanding self-priming performance with its unique design.
●Two blades made of ductile cast iron are used to easily pass through solid objects.
●Excellent impact and abrasion resistance.
● A high-quality mechanical seal is used for the shaft seal.
●Equipped with an elastic anti-vibration device that softens vibrations and provides stable driving.
● Light alloy casing, engine and coaxial design for easy movement.
●Cleaning cover can be removed with one touch, and maintenance and inspection are easy. -
PX models (non-automatic)/PXA models (automatic)- Submersible PumpsPlastic/stainless steel models
- Products for general households
- for industrial equipment
- for kitchen wastewater
- for pit gray water
- for septic tank
●Lightweight, compact and hard to clog.
● All wetted parts are made of resin and stainless steel for excellent rust resistance and durability.
● New mechanism that can change the discharge direction either "vertically" or "horizontally". (excluding 1.5kW and 2.2kW)
● Back pull-out structure that allows inspection and cleaning while piping is connected.
●Equipped with an automatic burnout prevention device in the motor.
● Cooling and lubricity of the mechanical seal are improved by adopting LLT (Long Life Tech). (0.25kW to 0.75kW) -
SX models (non-automatic)/SXA models (automatic)- Submersible PumpsCompact Models
- Products for general households
- for kitchen wastewater
- for septic tank
household use
●The original vortex generation mechanism induces solid matter with a vortex and banishes clogging in the pump.
● Uses an oil bath type mechanical seal.
●Equipped with an automatic burnout prevention device in the motor. -
TCVS models (non-automatic)- Submersible PumpsCast Iron Models
- for civil engineering
- for industrial equipment
- for kitchen wastewater
- for pit gray water
- for septic tank
●The newly designed high-performance whirlpool impeller prevents clogging and winding even in sewage containing fibrous contaminants.
● Low-wear type that prevents foreign matter from directly passing through the impeller.
●Built-in automatic return type motor protection device (auto cut).
●The shaft seal uses a double mechanical seal and an oil seal. (1.5 kW or more when combined with an oil seal)
●SiC with excellent wear resistance is used for the sliding part of the mechanical seal. -
TCN models (non-automatic)- Submersible PumpsCast Iron Models
- for civil engineering
- for industrial equipment
- for pit gray water
●Built-in automatic return type motor protection device (auto cut).
●The shaft seal uses a double mechanical seal and an oil seal or seal ring (5.5 to 7.5kW only).
●SiC with excellent wear resistance is used for the sliding part of the mechanical seal.
● Built-in equalizer (pressure adjustment mechanism) in the oil chamber (2.2 to 7.5 kW only).
